Uniaxial Extension Solid example
In this tutorial example an elastic solid is submitted to a uniaxial extension test. The problem is inspired by Exercise 4 from section 6.5 in (Holzapfel,2000). The geometry and tension applied are shown in the figure, where the $Lx$, $Ly$ and $Lz$ are the dimensions and the tension $p$ is applied on the face $x=Lx$, as nominal traction (see (Holzapfel,2000)).
Analytic solution
Let us consider that a uniform deformation is produced, with a nonzero axial stretch $\alpha$ and nonzero transversal stretch $\beta$. The corresponding deformation gradient and Green-Lagrange strain tensor are given by:
\[\textbf{F} = \left[ \begin{matrix} \alpha & 0 & 0 \\ 0 & \beta & 0 \\ 0 & 0 & \beta \end{matrix} \right] \qquad \textbf{E} = \left[ \begin{matrix} \frac{1}{2} \left(\alpha^2 -1\right) & 0 & 0 \\ 0 & \frac{1}{2} \left(\beta^2 -1\right) & 0 \\ 0 & 0 & \frac{1}{2} \left(\beta^2 -1\right) \end{matrix} \right]\]
The second Piola-Kirchhoff tensor $\textbf{S}$ is given by
\[\textbf{S}( \textbf{E} ) = p_1 tr(\textbf{E}) \textbf{I} + 2 p_2 \textbf{E}\]
then, using the relation $\textbf{P}=\textbf{F}\textbf{S}$, the $P_{yy}$ component is computed and set to zero (using the boundary conditions)
\[P_{yy}( \textbf{E} ) = p_1 \beta \left( \frac{1}{2} \left(\alpha^2 -1 \right) + \left( \beta^2 -1\right) \right) + 2 p_2 \beta (\frac{1}{2} \left(\beta^2 -1 \right)) = 0\]
then, using that $\beta\neq0$ (since $\text{det}( \textbf{F} ) \neq0$), we obtain
\[ p_1 \frac{1}{2} \left(\alpha^2 -1 \right) = - (p_1+p_2) \left(\beta^2 -1 \right)\]
then using the relation between the Lamé parameters $p_2$ and $p_1$ and the Young modulus and Poisson ratio, we obtain:
\[ \left(\beta^2 -1 \right) = -\nu \left(\alpha^2 -1 \right).\]
The axial component of the nominal stress is
\[P_{xx}( \textbf{E} ) = p_1 \alpha \left( \frac{1}{2} \left(\alpha^2 -1 \right) + \left( \beta^2 -1\right) \right) + 2 p_2 \alpha (\frac{1}{2} \left(\alpha^2 -1 \right)) = 0\]
and substituting we obtain
\[P_{xx}( \alpha ) = p_1 \alpha \frac{1-2\nu}{2} \left(\alpha^2 -1 \right) + p_2 \alpha \left(\alpha^2 -1 \right) = \left( \frac{E \nu}{(1+\nu)2} + \frac{E}{(1+\nu)2} \right) \alpha \left(\alpha^2 -1 \right)\]
thus, considering the axial displacement $u$ and using the stretch definition $\alpha = (1+u/Lx)$, we obtain
\[P_{xx}( u ) = \frac{E}{2} \left( \left( 1+\frac{u}{Lx} \right)^3 - \left( 1+ \frac{u}{Lx} \right) \right)\]
where $u$ is the $x$ displacement of the points located on face $x=Lx$.
Numerical solution: case 1
Before defining the structs, the workspace is cleaned, the ONSAS directory is added to the path and scalar geometry and material parameters are defined.
close all, if ~strcmp( getenv('TESTS_RUN'), 'yes'), clear all, end
% add path
addpath( genpath( [ pwd '/../../src'] ) ) ;
% scalar parameters
E = 1 ; nu = 0.3 ; p = 3 ; Lx = 2 ; Ly = 1 ; Lz = 1 ;MEB parameters
materials
The material of the solid considered is the Saint-Venant-Kirchhoff with Lamé parameters computed as
lambda = E*nu/((1+nu)*(1-2*nu)) ; mu = E/(2*(1+nu)) ;since only one material is considered, a scalar struct is defined as follows
materials = struct() ;
materials.modelName = 'SVK' ;
materials.modelParams = [ lambda mu ] ;elements
In this model two kinds of elements are used: tetrahedron for the solid and triangle for introducing the external loads. Since two kinds of elements are used, the struct have length 2:
elements = struct() ;
elements(1).elemType = 'triangle' ;
elements(2).elemType = 'tetrahedron' ;boundaryConds
in this case four BCs are considered, one corresponding to a load and three to displacements. the first BC introduced is a load, then the coordinate system, loadfactor time function and base load vector are defined
boundaryConditions = struct() ;
boundaryConds(1).loadsCoordSys = 'global';
boundaryConds(1).loadsTimeFact = @(t) p*t ;
boundaryConds(1).loadsBaseVals = [ 1 0 0 0 0 0 ] ;the other BCs have imposed displacements
boundaryConds(2).imposDispDofs = [1] ;
boundaryConds(2).imposDispVals = 0 ;
%
boundaryConds(3).imposDispDofs = [3] ;
boundaryConds(3).imposDispVals = 0 ;
%
boundaryConds(4).imposDispDofs = [5] ;
boundaryConds(4).imposDispVals = 0 ;
%initialConds
since no initial non-homogeneous initial conditions are used, an empty struct is used .
initialConds = struct();Mesh
A simple hand-made 8-node mesh, with 6 tetrahedrons is considered
The node coordinates matrix is given by the following
mesh = struct() ;
mesh.nodesCoords = [ 0 0 0 ; ...
0 0 Lz ; ...
0 Ly Lz ; ...
0 Ly 0 ; ...
Lx 0 0 ; ...
Lx 0 Lz ; ...
Lx Ly Lz ; ...
Lx Ly 0 ] ;and the connectivity cell is defined as follows with the four MEB parameters for each element followed by the indexes of the nodes of each element. All the eight triangle elements are considered with no material (since they are used only to include load) and the following six elements are solid SVK material tetrahedrons.
mesh.conecCell = {[ 0 1 1 5 8 6 ]; ... % loaded face
[ 0 1 1 6 8 7 ]; ... % loaded face
[ 0 1 2 4 1 2 ]; ... % x=0 supp face
[ 0 1 2 4 2 3 ]; ... % x=0 supp face
[ 0 1 3 6 2 1 ]; ... % y=0 supp face
[ 0 1 3 6 1 5 ]; ... % y=0 supp face
[ 0 1 4 1 4 5 ]; ... % z=0 supp face
[ 0 1 4 4 8 5 ]; ... % z=0 supp face
[ 1 2 0 1 4 2 6 ]; ... % tetrahedron
[ 1 2 0 6 2 3 4 ]; ... % tetrahedron
[ 1 2 0 4 3 6 7 ]; ... % tetrahedron
[ 1 2 0 4 1 5 6 ]; ... % tetrahedron
[ 1 2 0 4 6 5 8 ]; ... % tetrahedron
[ 1 2 0 4 7 6 8 ] ... % tetrahedron
} ;Analysis parameters
analysisSettings = struct() ;
analysisSettings.methodName = 'newtonRaphson' ;
analysisSettings.stopTolIts = 30 ;
analysisSettings.stopTolDeltau = 1.0e-8 ;
analysisSettings.stopTolForces = 1.0e-8 ;
analysisSettings.finalTime = 1 ;
analysisSettings.deltaT = .125 ;Output parameters
otherParams = struct() ;
otherParams.plots_format = 'vtk' ;
otherParams.problemName = 'uniaxialExtension_HandMadeMesh' ;[ modelCurrSol, modelProperties, BCsData ] = ONSAS_init( materials, elements, boundaryConds, initialConds, mesh, analysisSettings, otherParams ) ;
%After that the structs are used to perform the numerical time analysis
[matUs, loadFactorsMat, solutions ] = ONSAS_solve( modelCurrSol, modelProperties, BCsData ) ;
Analytic solution computation
analyticFunc = @(w) 1/p *E * 0.5 * ( ( 1 + w/Lx ).^3 - ( 1 + w/Lx) ) ;analyticCheckTolerance = 1e-6 ;
analyticFunc = @(w) E * 0.5 * ( (1 + w/Lx).^3 - (1+w/Lx) ) ;
controlDisps = matUs(6*6+1,:) ;
analyticVals = analyticFunc( controlDisps ) ;
controlDispsValsCase1 = controlDisps ;
loadFactorAnalyticalValsCase1 = analyticVals ;
loadFactorNumericalValsCase1 = loadFactorsMat ;Numerical solution: case 2
In this analysis case, the mesh information is read from a mesh file generated by the tool GMSH. The pressure is applied using local coordinates and the stiffness matrix is computed using the complex-step method.
otherParams.problemName = 'uniaxialExtension_GMSH_ComplexStep' ;this auxiliar line sets the right path to the testing environment
base_msh='';
if strcmp( getenv('TESTS_RUN'),'yes') && isfolder('examples'),
base_msh=['.' filesep 'examples' filesep 'uniaxialExtension' filesep];
end
%
[ mesh.nodesCoords, mesh.conecCell ] = meshFileReader( [ base_msh 'geometry_uniaxialExtension.msh'] ) ;
boundaryConds(1).loadsCoordSys = 'local';
boundaryConds(1).loadsBaseVals = [0 0 0 0 1 0 ] ;
elements(2).elemTypeParams = [ 2 ] ;
[ modelCurrSol, modelProperties, BCsData ] = ONSAS_init( materials, elements, boundaryConds, initialConds, mesh, analysisSettings, otherParams ) ;
%After that the structs are used to perform the numerical time analysis
[matUs, loadFactorsMat, solutions ] = ONSAS_solve( modelCurrSol, modelProperties, BCsData ) ;
controlDisps = matUs(6*6+1,:) ;
analyticVals = analyticFunc( controlDisps ) ;
controlDispsValsCase2 = controlDisps ;
loadFactorAnalyticalValsCase2 = analyticVals ;
loadFactorNumericalValsCase2 = loadFactorsMat ;
aux1 = loadFactorNumericalValsCase1' - loadFactorAnalyticalValsCase1 ;
aux2 = loadFactorNumericalValsCase2' - loadFactorAnalyticalValsCase1 ;
verifBoolean = ...
( norm( aux1 ) / norm( loadFactorNumericalValsCase1 ) < analyticCheckTolerance ) ...
&& ( norm( aux2 ) / norm( loadFactorNumericalValsCase1 ) < analyticCheckTolerance ) ;Plot

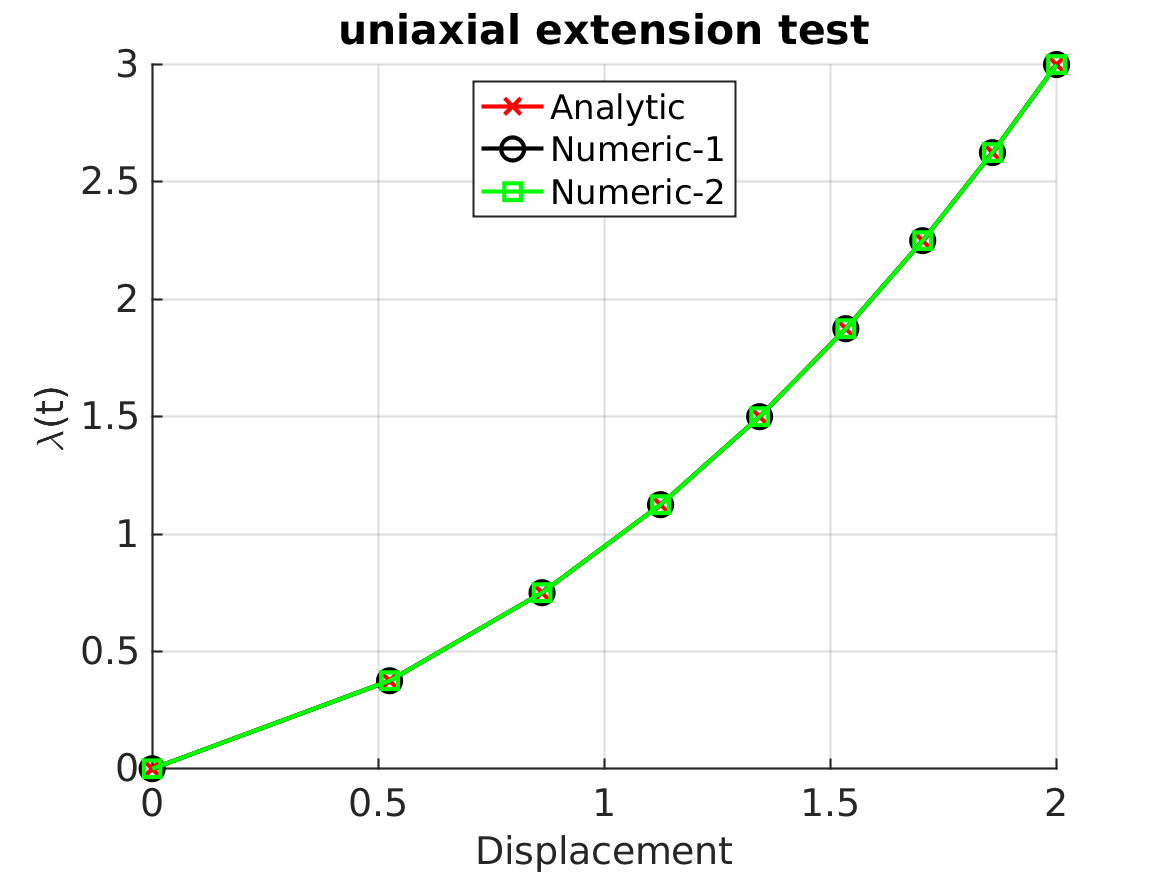

The numerical and analytic solutions are plotted.
lw = 2.0 ; ms = 11 ; plotfontsize = 18 ;
figure, hold on, grid on
plot( controlDispsValsCase1, loadFactorAnalyticalValsCase1, 'r-x' , 'linewidth', lw,'markersize',ms )
plot( controlDispsValsCase1, loadFactorNumericalValsCase1, 'k-o' , 'linewidth', lw,'markersize',ms )
plot( controlDispsValsCase2, loadFactorNumericalValsCase2, 'g-s' , 'linewidth', lw,'markersize',ms )
labx = xlabel('Displacement'); laby = ylabel('\lambda(t)') ;
legend( 'Analytic', 'Numeric-1', 'Numeric-2', 'location', 'North' )
set(gca, 'linewidth', 1.0, 'fontsize', plotfontsize )
set(labx, 'FontSize', plotfontsize); set(laby, 'FontSize', plotfontsize) ;
title('uniaxial extension test')
if length(getenv('TESTS_RUN')) > 0 && strcmp( getenv('TESTS_RUN'), 'yes')
fprintf('\ngenerating output png for docs.\n')
print('output/verifUniaxial.png','-dpng')
else
fprintf('\n === NOT in docs workflow. ===\n')
end
